Nautilus 3

Circular Luminaires

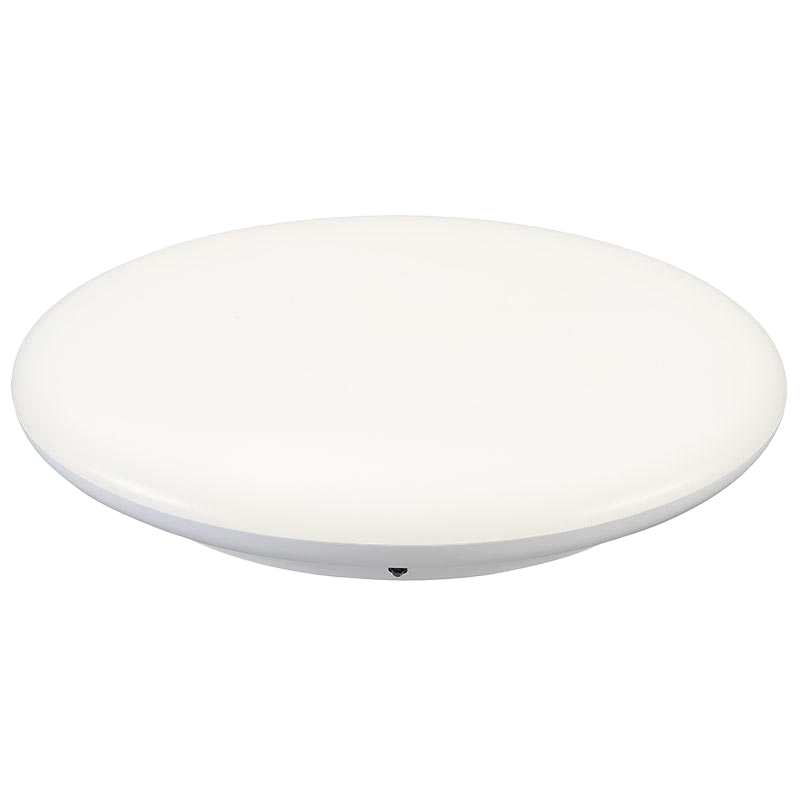

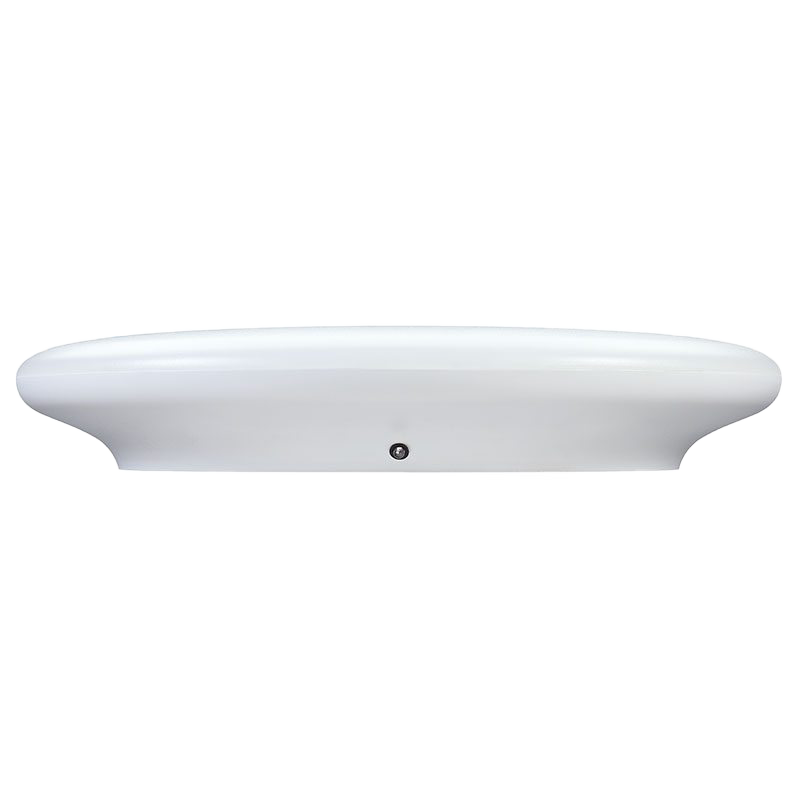

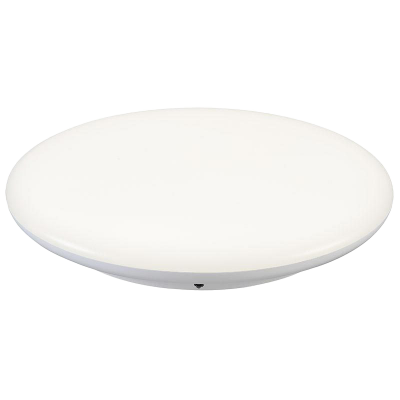

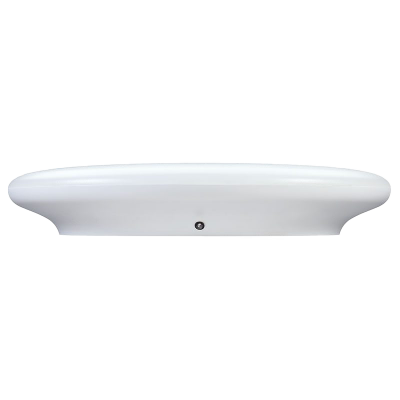

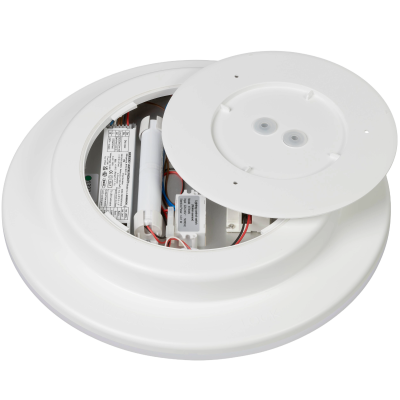

The Nautilus 3 range offers decorative surface mounted circular luminaires incorporating high output white LEDs within a ‘sealed’ polycarbonate light source enclosure minimising loss of efficacy due to dirt. The mains driver and emergency lighting gear is installed in the back of the housing away from internal heat sources. The main luminaire housing is installed by twisting on to the first fix back plate.

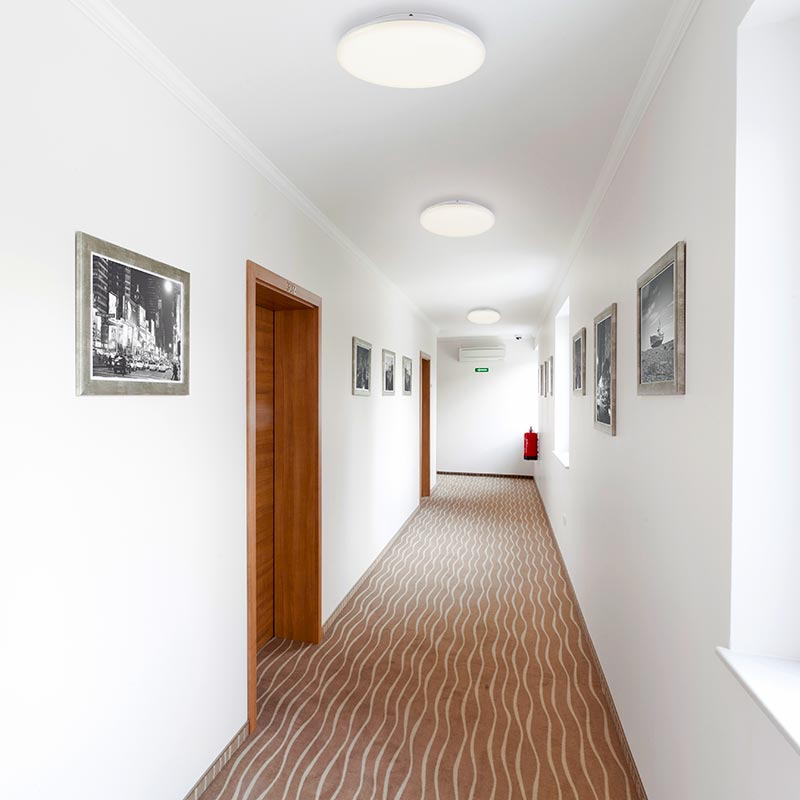

The Nautilus 3 range offers an exceptional opportunity to design contemporary lighting installations with aesthetic luminaires specifically designed to offer mains only or maintained emergency lighting with integral Micro-Wave presence detectors for switching the mains operation where required.

Nautilus 3 luminaires comply with EN60598.

Standard Nautilus 3 luminaires provide upto 3210 Luminaire Lumens at 26.0Watts (up to 123.5lm/W) in 3 different selectable colour temperatures: 3000K, 3500K and 4000K. The luminaires are available with standard mains drivers which have an adjustable output using DIP switches or DALI mains drivers and with integral 3-hour duration Maintained emergency gear, with the choice of standard, DALI/Self-Test or Bluetooth Wireless operation.

Mains and emergency versions may be specified with an integral Micro-Wave presence detector to switch the mains lighting. Sensitivity, ‘on’ time and ambient light levels can be selected during installation.

The emergency lighting versions utilise integral high temperature Lithium Iron Phosphate (LiFePO₄) batteries. Maintained versions can be used for standard switched mains lighting but will automatically provide emergency lighting in the event of a complete loss of normal mains

DALI/Self-Test or Bluetooth Wireless (BLE) Options:

Nautilus 3 luminaires can be supplied as standard mains/standard emergency; DALI mains/standard emergency; standard mains/ DALI emergency; standard mains/BLE emergency; DALI mains/DALI emergency or DALI mains/BLE emergency.
