Fusion

Bulkhead and Exit Sign

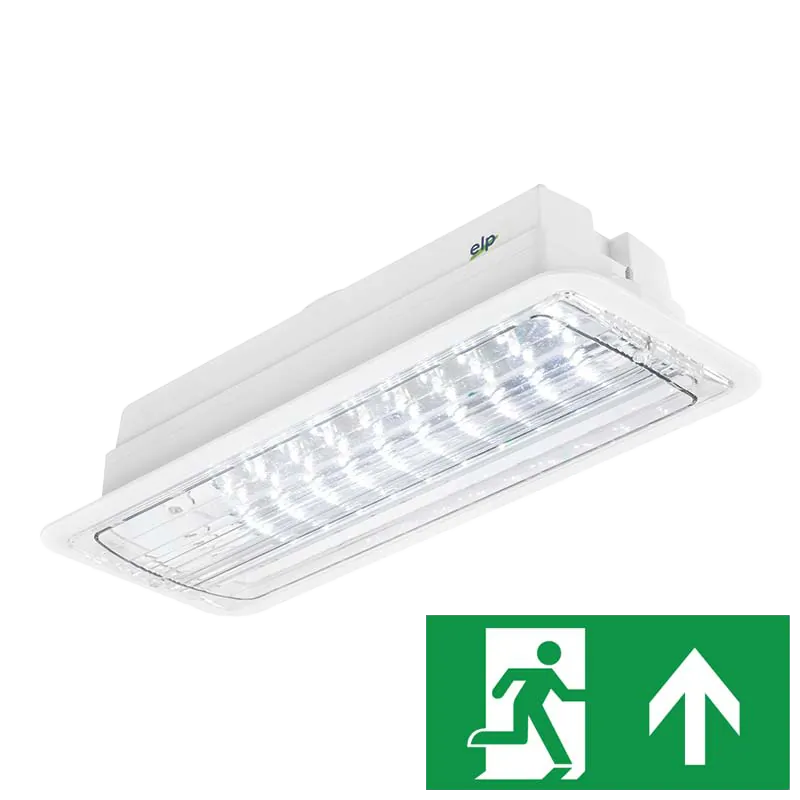

The Fusion range offers an attractive flush mounting luminaire with an optional lens that accommodates a hanging blade exit legend. The luminaires utilise a polycarbonate body and lens.

Ease of installation is assured due to the adjustable arms that swing out and clamp down onto the supporting surface.

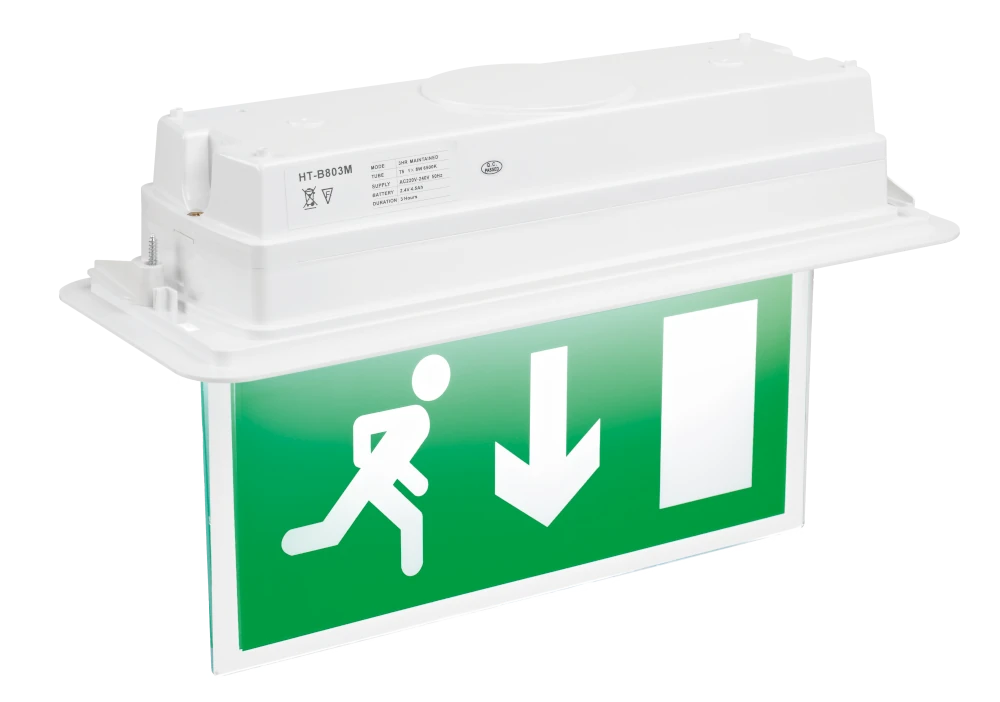

The optional exit panel is moulded with a wedge shape to improve the luminance distribution over the legends. The plain lens seals the recessed enclosure to IP65 (IP21 for EXIT version).

The Fusion has been tested and BSI Kitemark Certified to EN60598.2.22 and they are also Certified by United Arab Emirates Ministry of Interior Civil Defense GHQ.

OPERATION

The Fusion luminaires utilise 16 x white LEDs with Maintained or mains only operation. (Non-maintained operation is available by excluding a switched live supply). All emergency versions provide 3 hour duration as standard from integral high temperature Nickel Cadmium batteries (NiCd).

NOTE: Lithium Iron Phosphate (LiFePO₄) versions are avaliable upon request.

Maintained versions can be used for standard switched mains lighting but will automatically provide emergency lighting in the event of a complete loss of normal mains supply. The hanging blade exit legend panels require a different lens to the plain version and must be ordered as a complete unit.

DALI/Self-Test Options

The Fusion luminaires can be specified with integral DALI/Self-Test gear providing automatic Self-Test in accordance with BSEN62034 or fully interoperable DALI operation when connected to a DALI control system.

Fusion luminaires can also be specified with DALI control mains drivers or both DALI mains and DALI Maintained emergency.

NOTE: Fusion luminaires can be equipped with SurePath BLE Bluetooth addressable Gateway modules.

Product	Bulkhead and Exit Sign
Light Source	16 x white LEDs
Luminaire Lumens	>160lm
Sign viewing distance	27m (/BLD)
Construction	Polycarbonate base with optical grade, UV stabilised prism lens
Geartray	Hinged white plastic
Cable entry	20mm drilling points (polycarbonate)

	Maintained	Mains only
Light source	16 x white LEDs
Colour temperature	4500K
Luminaire lumens (mains)	>160lm	>160lm
Lumens (emergency)	>160lm	–
IP rating	FLUSH: IP65 ta25 – EXIT: IP21 ta25
Ambient temperature (Ta)	0°C – 25°C
Insulation class	Class II
Supply voltage	230V ~ 50Hz
Supply power	3.0W	1.7W
Charge power (typical)	1.2W	–
Battery	3.6V 1.5Ah NiCd	–
Weight	1.9kg	1.7kg

Order Codes	Description
FUSION (FLUSH)
FFD/M3	Maintained 3-hour emergency Flush bulkhead
FFD/M3/DALI	Maintained 3-hour DALI emergency Flush bulkhead
FFD/230	Mains only flush bulkhead
FFD/230D	DALI mains only flush bulkhead
FUSION (EXIT)
FED/M3	Maintained 3-hour emergency Flush exit
FED/M3/DALI	Maintained 3-hour DALI emergency Flush exit
FED/230	Mains only flush exit
FED/230D	DALI mains only flush exit
OPTIONS:	/BLE	Wireless DALI emergency
BLADE EXIT LEGENDS:	FED/BLD/ECAL-R	EC Format — Arrow Left/Right
	FED/BLD/ECAD	EC Format — Arrow Down
	FED/BLD/ISOAL-R	ISO Format — Arrow Left/Right
	FED/BLD/ISOAD	ISO Format — Arrow Down
	FED/BLD/ISOAU	ISO format — Arrow Up

NB: Contact our Sales Office regarding optional LiFePO₄ versions

Mounting Height Hm (m)	Trans. to wall	Trans. to trans.	Axial to trans.	Axial to axial	Axial to wall
2.5	2.0	6.9	6.1	3.6	1.1	1 Lux min. at centre
4.0	1.5	5.7	5.3	3.4	0.5	1 Lux min. at centre
2.5	3.4	9.7	8.0	5.2	1.7	0.5 Lux min. (open)
4.0	2.5	9.5	7.8	5.0	1.0	0.5 Lux min. (open)
