Finesse

Slim LED Bulkhead Luminaires

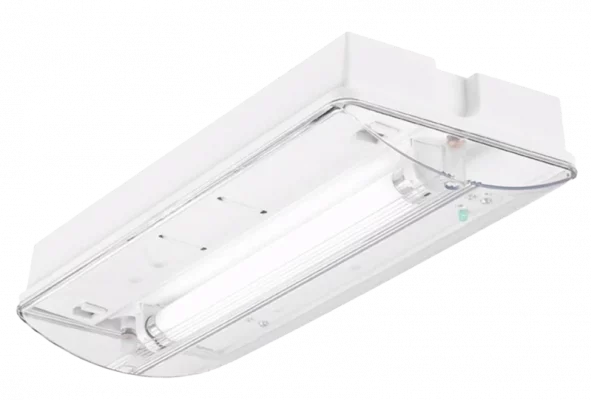

The Finesse range offers an attractive, slim, IP rated enclosure suitable for semi-flush or surface mounting with white LED light sources. The Finesse luminaires utilise a polycarbonate body and lens with linear prisms providing wide intensity distribution.

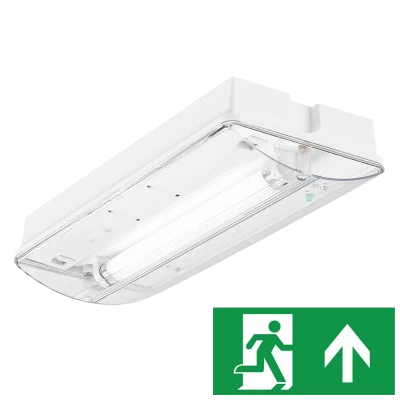

Finesse luminaires are available with an alternative lens which has a slot retaining an injection moulded legend blade.

The luminaires have been tested and BSI Kitemark Certified to EN60598.2.22 and they are also Certified by UAE Ministry of Interior Civil Defense GHQ.

OPERATION

The Finesse luminaires are available with Non-Maintained, Maintained or mains only operation. (Non-maintained operation is available by excluding a switched live supply). Maintained versions can be used for standard switched mains lighting but will automatically provide emergency lighting in the event of a complete loss of normal mains supply. All emergency versions provide 3 hour duration as standard from integral Nickel Cadmium (NiCd) batteries.

NOTE: Lithium Iron Phosphate (LiFePO₄) versions are available upon request.

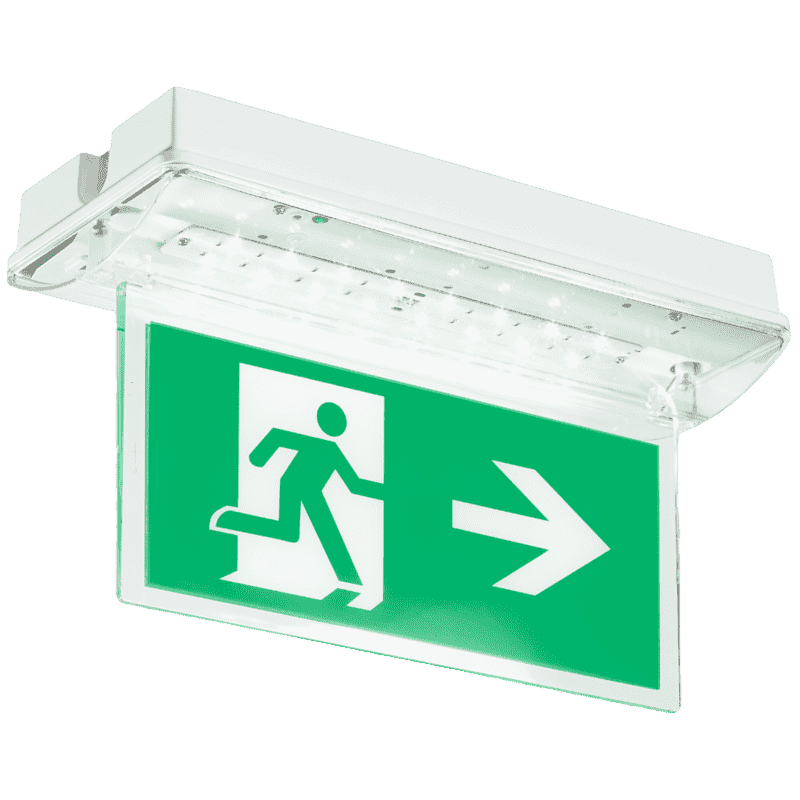

Finesse luminaires can be semi-recessed mounted using the FI/RB kit. The hanging blade exit panels require a different lens to the plain version which reduces the IP rating to IP21.

DALI/Self-Test Options

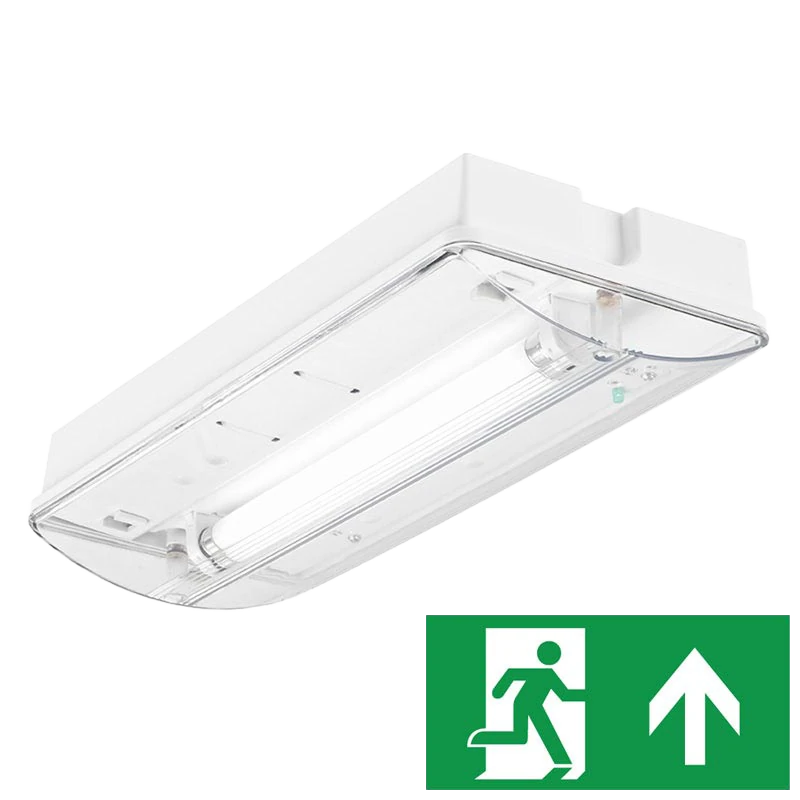

The Finesse luminaires can be specified with integral DALI/Self-Test gear providing automatic Self-Test in accordance with BSEN62034 or fully interoperable DALI operation when connected to a DALI control system. The Finesse luminaires can also be specified with DALI control mains drivers or both DALI mains and DALI Maintained emergency. NOTE: Finesse luminaires can be equipped with SurePath BLE Bluetooth addressable Gateway modules.

Product	Bulkhead and Exit Sign
Light Source	16 x white LEDs
Luminaire lumens	>160lm
Sign viewing distance	34m (/BLD)
Construction	Polycarbonate base with optical grade, UV stabilised linear prism lens
Geartray	Hinged white painted steel
Dimensions	375mm (L) x 160mm (W) x 75mm (H)
Cable entry	20mm drilling points (polycarbonate)

	Maintained	Mains only
Light source	16 x white LEDs
Colour temperature	4500K
Luminaire lumens (mains)	>160lm	>160lm
Lumens (emergency)	>160lm	–
IP rating	IP64 (IP21 for blade exit)
Ambient Temperature (Ta)	0°C – 25°C
Insulation class	Class II
Supply voltage	230V ~ 50Hz
Supply power	3.0W	1.7W
Charge power (typical)	1.2W	–
Battery	3.6V 1.5Ah NiCd	–
Weight	1.5kg	1.4kg

Order Codes	Description
FID/M3	Maintained 3-hour emergency slim bulkhead
FID/M3/DALI	Maintained 3-hour DALI emergency slim bulkhead
FID/230	Mains only slim bulkhead
FID/230D	DALI version of mains only slim bulkhead
FIDE/M3	Maintained 3-hour DALI emergency slim bulkhead + blade exit legend
FIDE/M3/DALI	Mains only slim bulkhead + blade exit legend
FIDE/230	DALI version of mains only slim bulkhead + blade exit legend
FIDE/230D	DALI version of mains only slim bulkhead + blade exit legend
OPTIONS:	/BLE	Wireless DALI emergency
	/RB/KIT	Semi-recessing kit
BLADE EXIT LEGENDS:	/BLD/ECAL-R	EC format — Arrow Left/Right
	/BLD/ECAD	EC format — Arrow Down
	/BLD/ISOAL-R	ISO format — Arrow Left/Right
	/BLD/ISOAD	ISO format — Arrow Down
	/BLD/ISOAU	ISO format — Arrow Up
SELF-ADHESIVE EXIT LEGENDS:	FI/LEG/ECAL	EC format — Arrow Left
	FI/LEG/ECAR	EC format — Arrow Right
	FI/LEG/ECAD	EC format — Arrow Down
	FI/LEG/ISOAL	ISO format — Arrow Left
	FI/LEG/ISOAR	ISO format — Arrow Right
	FI/LEG/ISOAD	ISO format — Arrow Down
	FI/LEG/ISOAU	ISO format — Arrow Up

NB: Contact our Sales Office regarding optional LiFePO4 versions

Mounting Height Hm (m)	Trans. to wall	Trans. to trans.	Axial to trans.	Axial to axial	Axial to wall
2.5	2.0	6.9	6.1	3.6	1.1	1 Lux min. at centre
4.0	1.5	5.7	5.3	3.4	0.5	1 Lux min. at centre
2.5	3.4	9.7	8.0	5.2	1.7	0.5 Lux min. (open)
4.0	2.5	9.5	7.8	5.0	1.0	0.5 Lux min. (open)
